GPS Tracker Devices
Advanced vehicle tracking solutions with global connectivity and comprehensive monitoring features

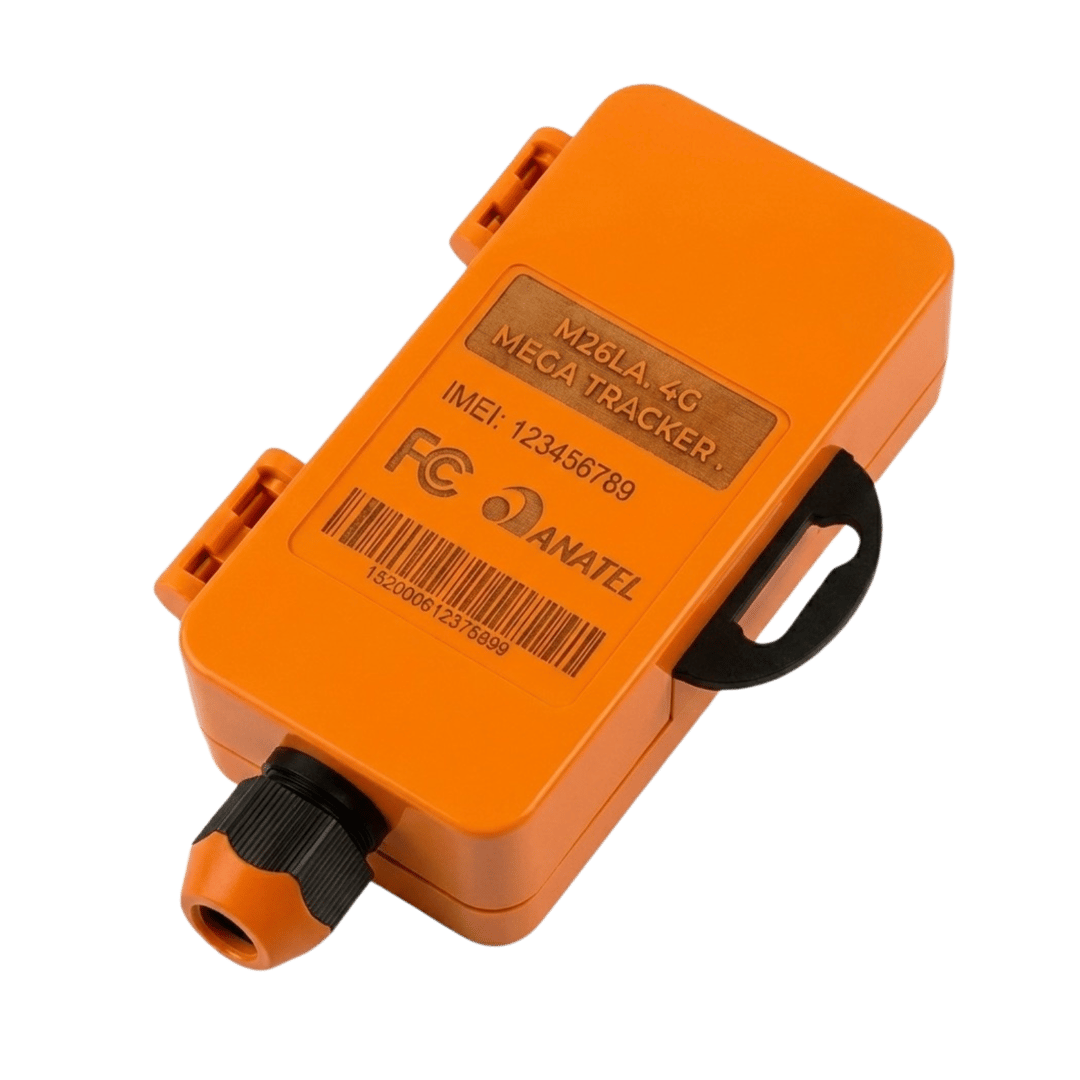

M26
Professional GPS TrackerAdvanced vehicle tracking device with global Cat.1/GPRS network connectivity, ACC ignition detection, remote control capabilities, and extended GPIO interfaces for comprehensive fleet management.
GNSS Specifications
GNSS Type
Qualcomm All-in-One GNSS receiver
Position Accuracy
Autonomous: < 2.5m CEP
TTFF (Open Sky)
Hot start: 1s average
Sensitivity Performance
Technical Specifications
Dimensions
95× 55 × 12.5mm
Weight
95g (3.35oz)
Backup Battery
Li-Polymer, 590 mAh
Operating Voltage
8V to 32V DC
Operating Temperature
-30℃~ +80℃
Buffer Messages
Up to 10,000 messages
Interface Specifications
Digital Input
2 positive trigger input for ignition detection
Digital Output
2 digital output, open drain, 150 mA max drive current
Configurable I/O
1 special I/O configurable as negative trigger input or open drain output
Serial Port
3 TTL UART port for upgrading and debugging
Network & Communication
Network Support
GPRS, 4G Cat.1 global connectivity
Protocol Support
TCP, UDP, SMS transmission
Antennas
Internal cellular and GNSS antennas
Indicators
CEL and GNSS LED status indicators
Advanced Tracking Features
Geo-fencing
Support up to 20 circular and 20 polygon geo-fence regions with instant alarm notifications.
Crash Detection
Accident data collection for reconstruction and analysis with immediate alerts.
Driving Behavior
Aggressive driving behavior detection including harsh braking and acceleration monitoring.
Tow Alarm
Instant alarm notifications for tow events when ignition is off, preventing theft.
Remote Control
OTA control of digital outputs and remote oil/electricity cut-off capabilities.
Scheduled Reporting
Flexible reporting based on time intervals, distance, mileage or combination settings.
Perfect for Fleet Management
Professional GPS tracking solution for comprehensive vehicle monitoring and security
